Deploy Kong Gateway with Docker

Kong’s official documentation is quite detailed — readers should refer to it first. This document serves as a personal memo and may omit some details.

There are many ways to deploy Kong Gateway. This guide uses the simplest approach: manually deploying containers with Docker.

Network

docker network create kong-network

Database

Here we deploy a local Postgres container.

docker volume create kong-database-volume

docker run -d \
    --name kong-database \
    --network kong-network \
    -p 5432:5432 \
    -e "POSTGRES_USER=kong" \
    -e "POSTGRES_DB=kong" \
    -e "POSTGRES_PASSWORD=kongpass" \
    -v kong-database-volume:/var/lib/postgresql/data \
    postgres:16

Run migrations:

docker run --rm --network kong-network \
    -e "KONG_DATABASE=postgres" \
    -e "KONG_PG_HOST=kong-database" \
    -e "KONG_PG_PASSWORD=kongpass" \
    kong/kong:3.9.1 kong migrations bootstrap

Kong Gateway

docker run -d \
    --name kong-gateway \
    --network kong-network \
    -e "KONG_DATABASE=postgres" \
    -e "KONG_PG_HOST=kong-database" \
    -e "KONG_PG_USER=kong" \
    -e "KONG_PG_PASSWORD=kongpass" \
    -e "KONG_PROXY_ACCESS_LOG=/dev/stdout" \
    -e "KONG_ADMIN_ACCESS_LOG=/dev/stdout" \
    -e "KONG_PROXY_ERROR_LOG=/dev/stderr" \
    -e "KONG_ADMIN_ERROR_LOG=/dev/stderr" \
    -e "KONG_ADMIN_LISTEN=0.0.0.0:8001" \
    -e "KONG_ADMIN_GUI_PATH=/manager" \
    -e "KONG_ADMIN_GUI_URL=http://yourdomain.com:8002/manager" \
    -p 80:8000 \
    -p 443:8443 \
    -p 8001:8001 \
    -p 8002:8002 \
    kong/kong:3.9.1

Since a domain is configured, SSL certificates must be addressed. Kong ships with an ACME plugin that can issue certificates for your domain and auto-renew them.

Access Kong Manager at http://yourdomain.com:8002/manager:

ACME Plugin

To use the ACME plugin for certificate issuance, there are three main steps:

1. Create an acme-service — a dummy service that handles ACME challenges
2. Create an acme-route under the acme-service
3. Create an acme-plugin — this is global and implements core ACME functionality

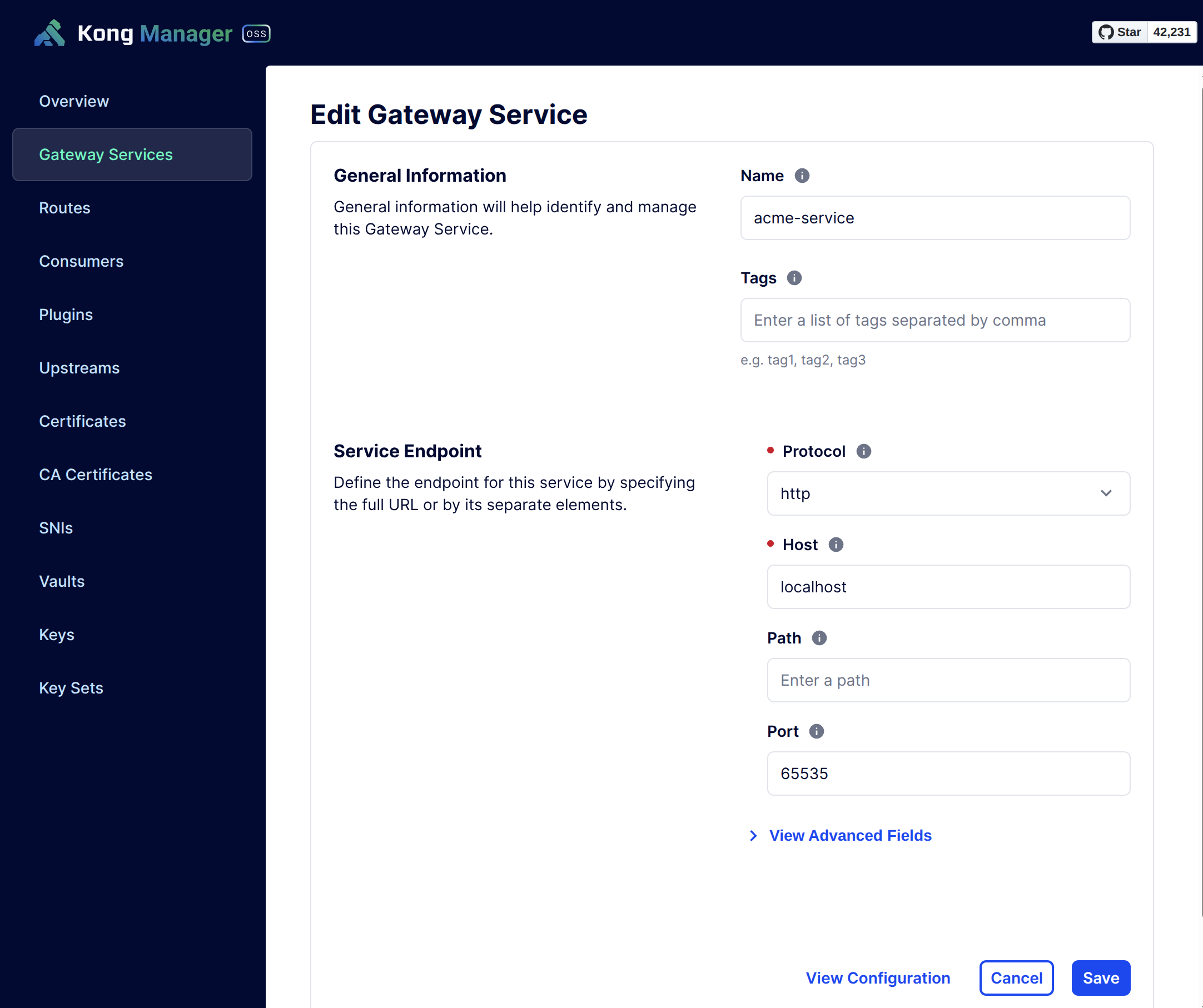

acme-service

Note: host: localhost and port: 65535 are meaningless placeholder values.

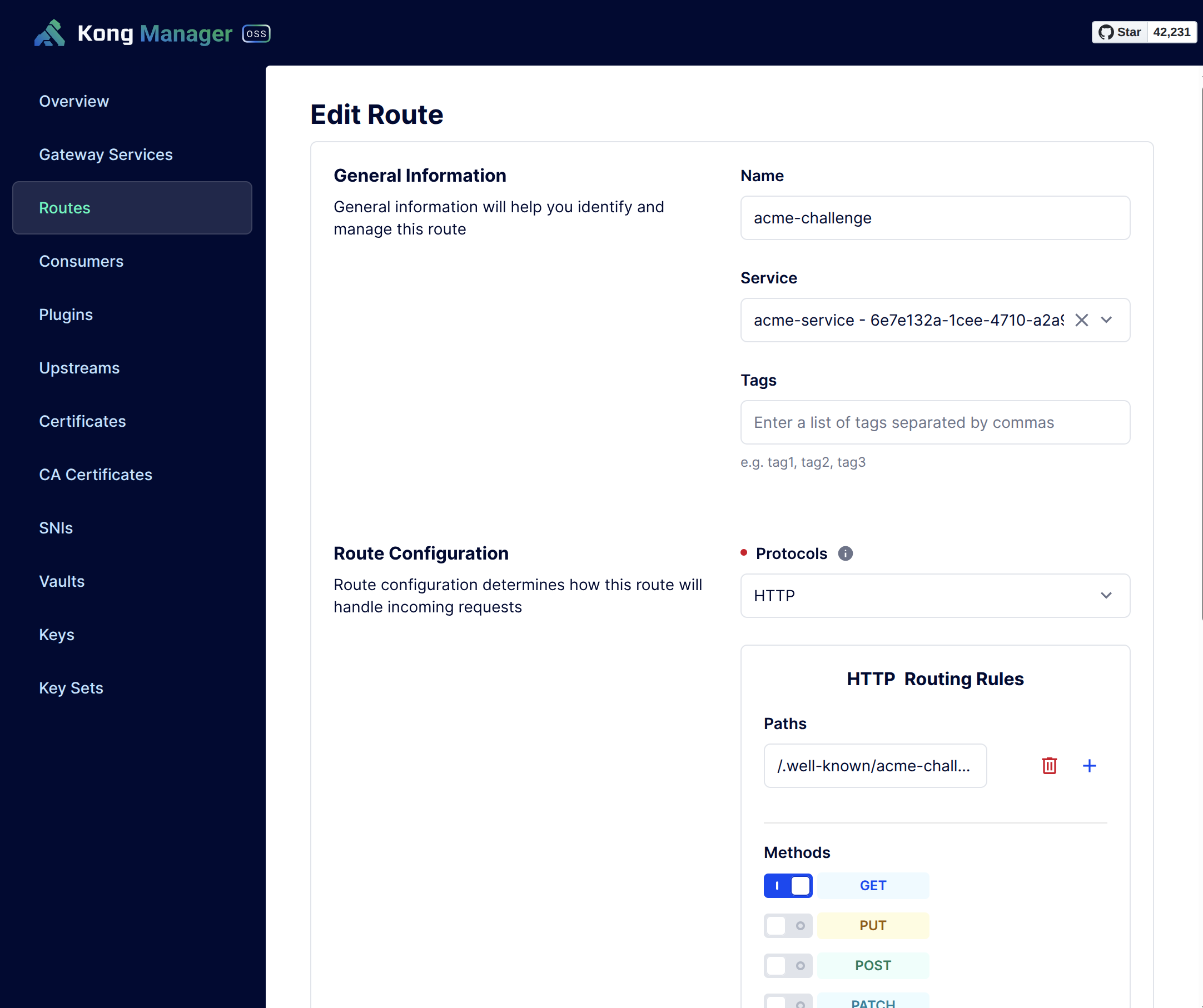

acme-route

acme-plugin

Note:

• You can add one or more domains in the domains option
• Or you can enable Allow Any Domain

ACME plugin configuration is now complete.

Create SSL Certificate

Trigger certificate generation via the Kong Admin API:

curl http://localhost:8001/acme -d host=yourdomain.com

After a few minutes you’ll see:

{"message":"certificate for host yourdomain.com is created"}

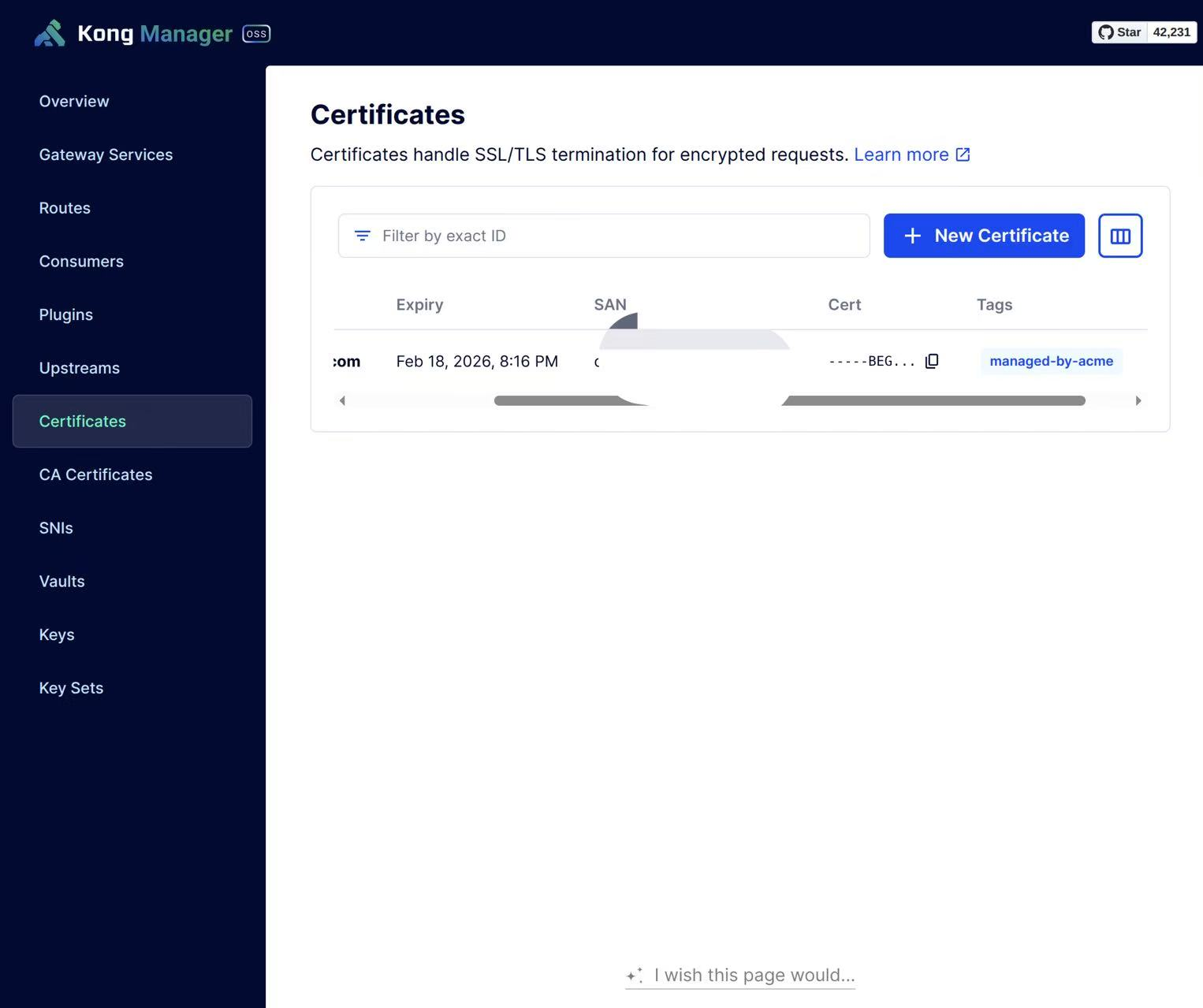

Then in Kong Manager / Certificates:

Secure Kong Manager Access (SSL + Auth)

To access Kong Manager via domain with SSL, several configuration changes are needed:

1. Modify Kong Gateway environment variables
2. Create Kong Manager Service & Route
3. Create Kong Admin Service & Route

Modify Environment Variables

Update KONG_ADMIN_GUI_PATH, KONG_ADMIN_GUI_URL, KONG_ADMIN_LISTEN, and KONG_ADMIN_API_URL:

    -e "KONG_ADMIN_LISTEN=0.0.0.0:8001,0.0.0.0:443 ssl" \
    -e "KONG_ADMIN_GUI_PATH=/kong-manager" \
    -e "KONG_ADMIN_GUI_URL=https://kong.yourdomain.com:443/kong-manager" \
    -e "KONG_ADMIN_API_URL=https://kong.yourdomain.com:443" \

Create Kong Manager Service & Route

Due to environment variable changes, using the Kong Manager UI may encounter CORS issues. Use the Admin API directly:

curl -X POST 'http://localhost:8001/services' \
  -H 'content-type: application/json' \
  --data-raw '{"name":"kong-manager-service","port":8002,"url":"http://localhost:8002"}'

Create route:

curl -X POST 'http://localhost:8001/services/<service-id>/routes' \
  -H 'content-type: application/json' \
  --data-raw '{"name":"kong-manager-route","protocols":["http","https"],"strip_path":false,"hosts":["kong.yourdomain.com"],"paths":["/kong-manager"]}'

Create Kong Admin Service & Route

Create service:

curl -X POST 'http://localhost:8001/services' \
  -H 'content-type: application/json' \
  --data-raw '{"name":"kong-admin-service","port":8001,"url":"http://localhost:8001"}'

Create route:

curl -X POST 'http://localhost:8001/services/<service-id>/routes' \
  -H 'content-type: application/json' \
  --data-raw '{"name":"kong-admin-route","protocols":["http","https"],"strip_path":false,"hosts":["kong.yourdomain.com"],"paths":["/"]}'

Configure Authentication Plugins

The open-source Kong Manager has no access control by default. With domain access enabled (public internet accessible), this is dangerous.

Solutions:

• Enable IP whitelisting on the server
• Add authentication plugins to Kong Manager

We use Basic Auth because browsers have excellent support for it — a native auth dialog appears without any Kong Manager UI modifications.

Basic Auth Plugin

Configure Basic Auth for Kong Manager Service:

Configure Basic Auth for Kong Admin Service:

ACL Plugin

Basic Auth alone is insufficient — any credentials with Basic Auth on Kong could access Kong Manager (privilege escalation). The ACL plugin controls which credentials can access Kong Manager.

Configure ACL for Kong Manager Service:

Configure ACL for Kong Admin Service:

The ACL plugin’s Allow field is the Group Name, configured in the Consumer.

Configure Kong Manager Consumer

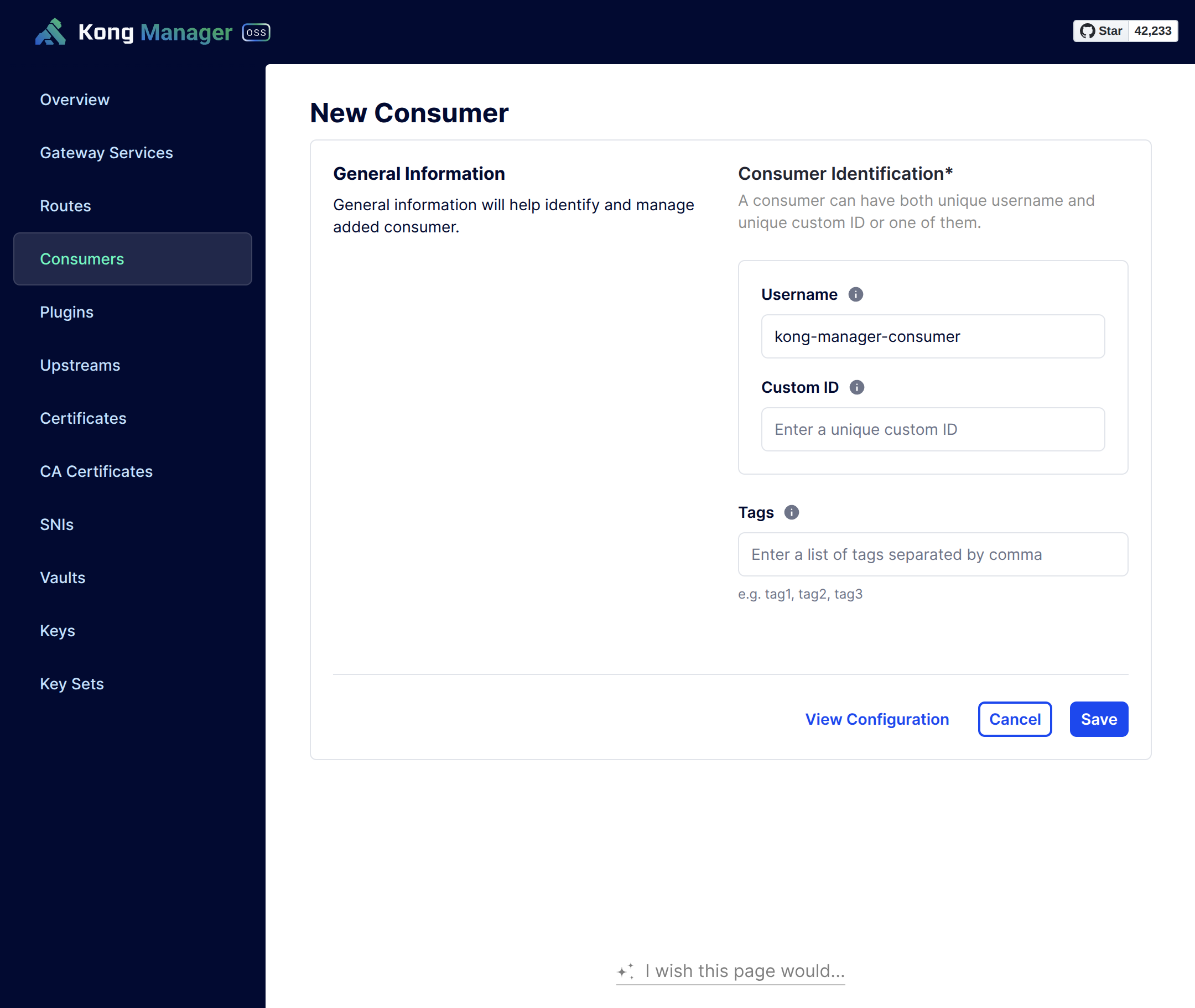

Create a dedicated Consumer for Kong Manager:

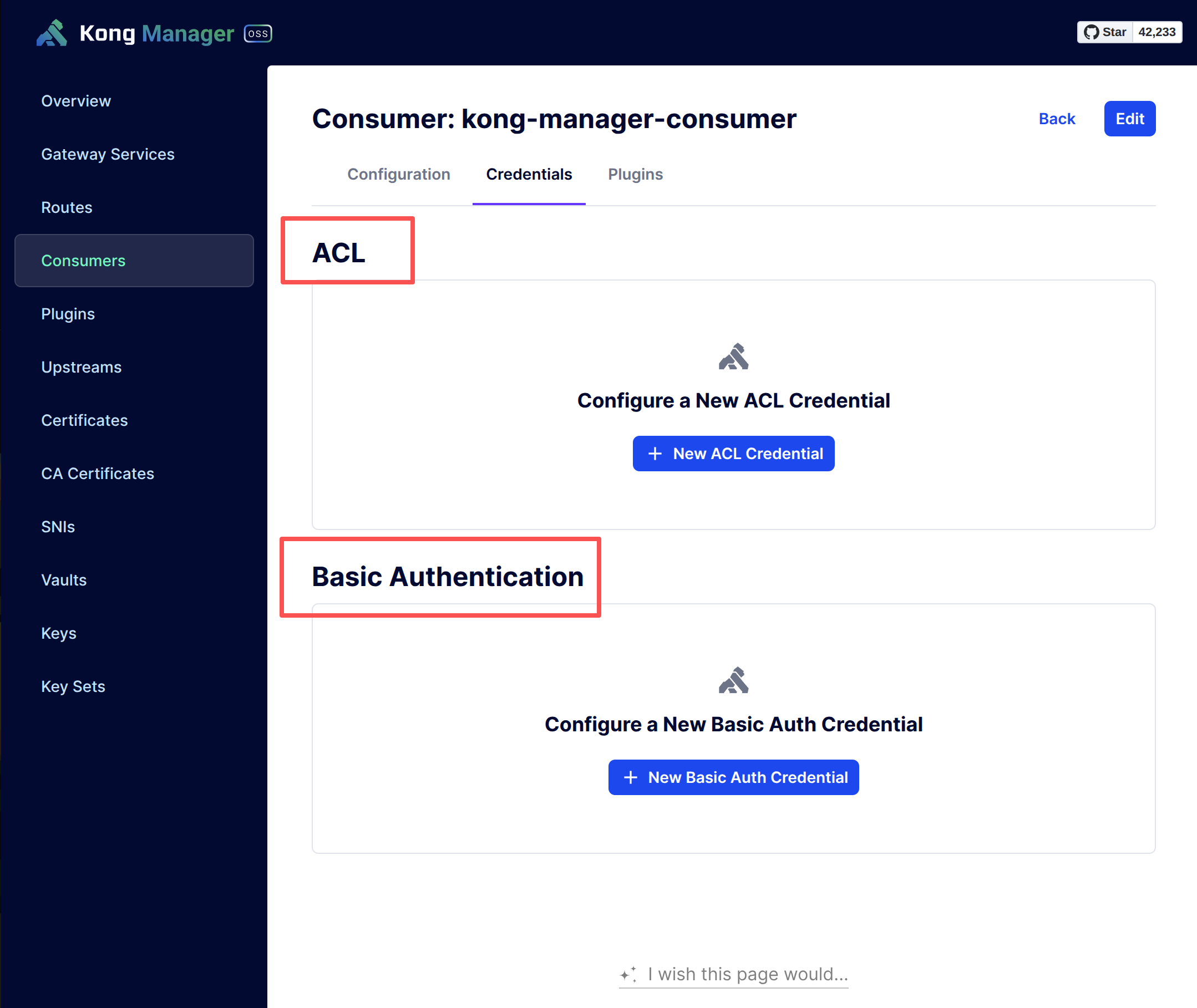

Add credentials to this Consumer:

Configure ACL Credentials:

Configure Basic Auth Credentials:

Set Username & Password as desired, ensuring security.

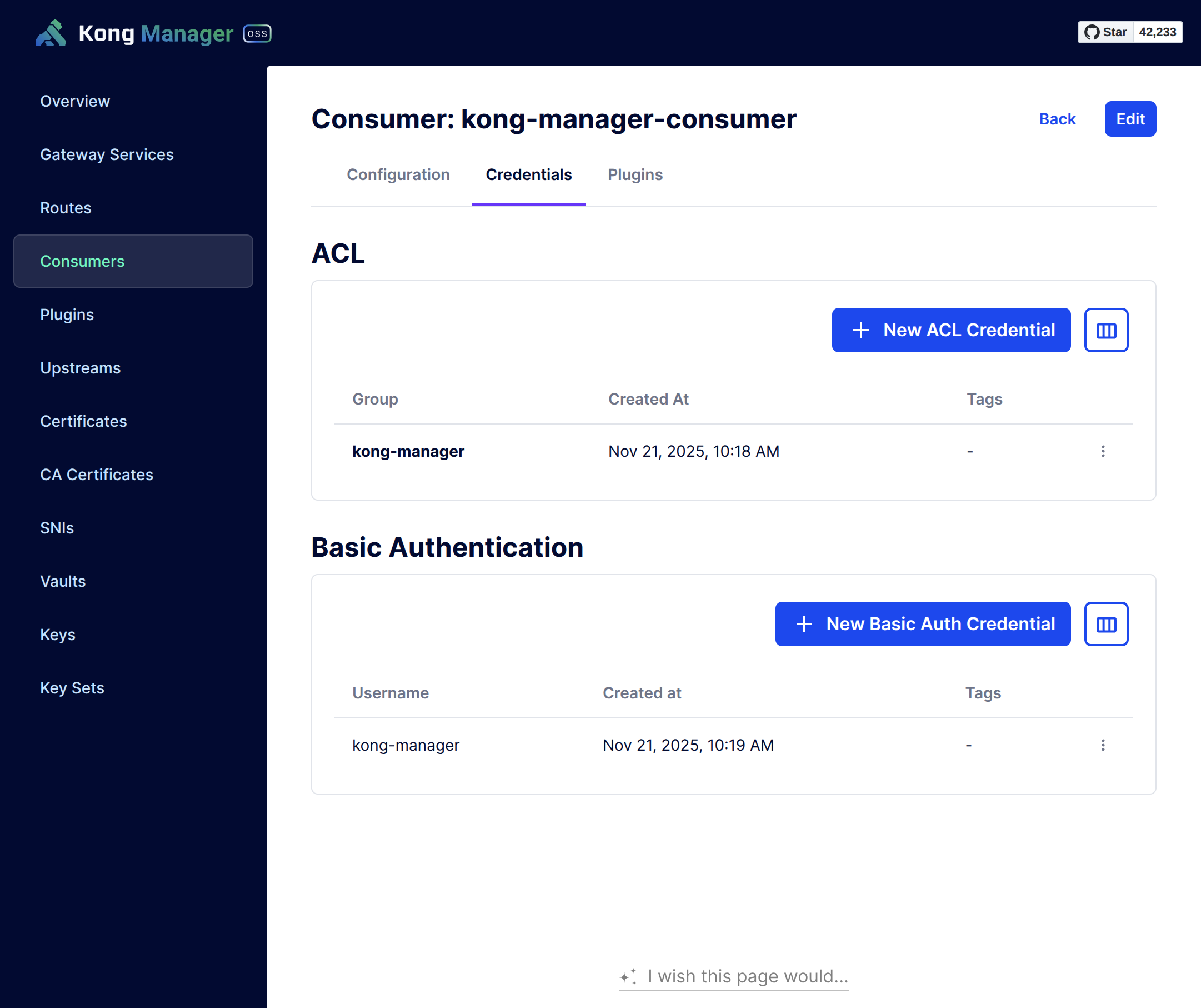

After configuring Consumer Credentials:

Enable Service Plugins

Enable the plugins on both Kong Manager & Kong Admin Services.

Redeploy Kong Gateway

All configuration is complete. Redeploy Kong Gateway for environment variables to take effect.

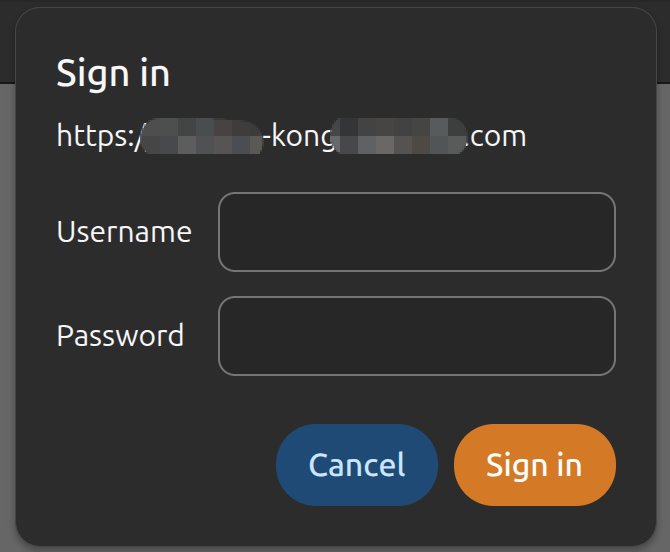

Access https://kong.yourdomain.com/kong-manager — a Basic Auth dialog appears:

Enter the Username & Password to access Kong Manager UI.
